Posted 10/29/2016 3:11:03 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793
I guess this area is more public than the other build thread. Please let me know if I am wrong.

I will place information about my build here without specifics for those that are interested but can't see the other thread. In the private thread I will place more specifics to include measurements etc.

Just to recap where I'm at for those that don't know.

1. In an effort to make this large car street legal I will be building the body at 90% size and reduce the size of the tires/suspension to make up the rest. The goal is 8' 6" wide.

2. Because there is a lot of guess work involved in building a car based on pictures and scale models, I am working on a mock up to work things out before I start welding a bunch of expensive steel together.

3. Last week I did a rough mock up of the front end and cabin frame to make sure the 90% scale would work. It was determined that I needed to do a mock up of the front clip to check spacing.


Today I cut out the mock up of the front clip skin. (measurements in private thread)

Batmobile

I think it came out pretty good. The next step will to frame it up a bit. This is 3/8" plywood. I decided to use that instead of the foam I tried earlier to add a bit more strength. When it comes time to reproduce this in steel this will make an excellent template.

Here is the frame mock up laid on top of the skin.

Batmobile

It looks better than I expected. Keep in mind that the skin will not be flat but will have a curve when framed up. This is the correct placement of the cabin in relationship to the front clip. Where the end of the skin has those tail sections is where the large air intakes start.

You can see there is room for me to fix that tight legroom in the cabin. I may even be able to widen the cockpit a little. I will have to frame up the skin before I will know for sure.
Post #150597
Posted 11/1/2016 5:52:33 PM
Has NO LIFE!!

Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!


Last Login: Today @ 8:17:29 PM
Posts: 2,586, Visits: 3,728
hey sly,
I like many others will be looking forward to your progress postings and photo images. Will you be mocking up the whole vehicle and then translating the wood pieces into steel. vertigo
Post #150613
Posted 11/1/2016 7:24:24 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793
I'm thinking that might be a good idea. I can work out concerns before hand and when I go to steel it will move much quicker. What do you think?

I would love to have the body, as shown in my avatar, mocked up by spring.
Post #150615
Posted 11/2/2016 5:39:04 PM
Has NO LIFE!!

Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!Has NO LIFE!!


Last Login: Today @ 8:17:29 PM
Posts: 2,586, Visits: 3,728
SOME INFORMATION ON BUILD STRATEGY: MOCK UP VS DIRECT BUILDING THE DOJ
“I'm thinking that might be a good idea. I can work out concerns
beforehand and when I go to steel it will move much quicker. What do
you think?”  sly

I believe building the whole vehicle in wood is a great idea because
fitting wood together is a lot easier than fitting metal. Once the
wood vehicle is completed you will know everything is fitting right
and you will have a set of fitted templates to translate into cut
steel parts. Rather than increasing build time, I actually think
building the vehicle in wood first, will actually save a lot of build
hours. vertigo
Post #150621
Posted 11/2/2016 6:13:48 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793
Yep, that's right along with what I'm thinking.
Post #150622
Posted 11/4/2016 7:39:07 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793

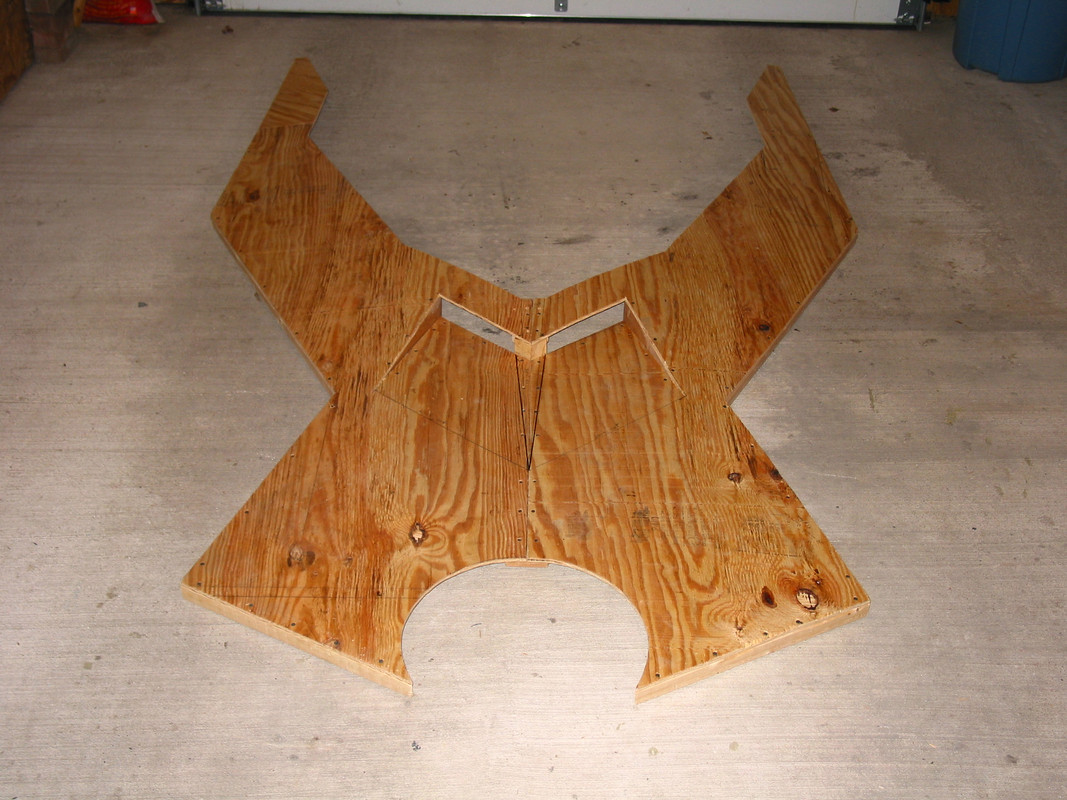

Added the air scoops.

It is quite interesting, looking at the original it always looked like the part in front of the air scoops was flat and the angle increases past the scoops. This is backed up when you view the chassis without the skin on. The tube frame is flat through the air scoops and then angles up to the dash. Well, when I added the air scoops to my mock up those exact angles happened automatically! It was like magic.

Also, I spent a lot of time measuring distances and angles to get the curve of the skin right when I framed it up, but when I added the scoops all of that happened magically again!

Unfortunately, you probably can't see any of that in this pic.

Batmobile

I'm not sure exactly how wide to make the scoop divider. This is set up for 2" but I think it might not look wide enough. What do you think? That's something I will need to play around with.

Batmobile

I also added 2x2s around the edges to add the look of thickness needed and to stiffen the edges.

Batmobile

Next I will work on that scoop divider, the curved bar that is the point that the dashboard connects, the openings in the skin for the defensive weapons and helicopter tow points.... as well as the cut outs in the front edge, and altering the frame to fit this skin. Oh, and adding the wheel flares that are a distinctive feature in my opinion.

A couple of things I noticed at this point. It looks like the front wheel will need to be no bigger than 26" in diameter and probably more like 24". I thought they would be bigger. (That's the actual wheel, not the wheel cover) Also, This has made it very clear where the upper chassis tubing should go. That was my main goal.
Post #150630
Posted 11/4/2016 7:40:07 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793
Not sure why pictures are not showing. I will check back later and see if it works. But for now you can right click the picture, copy the url and open it in a new window.
Post #150631
Posted 11/5/2016 3:17:44 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793
Added the turret base plate today.

Batmobile

Made this out of half inch plywood. Would probably use quarter inch steel plate for this and maybe 1/8th inch plate for the skin. Not really sure yet.

And what it looks like on the mockup.

Batmobile
Post #150633
Posted 11/8/2016 2:07:58 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793
Got a little more done to the mockup.

1. removed the 2x2 framing and replaced it with 1x2 framing because I thought the 2x2 was a little too thick.

Batmobile

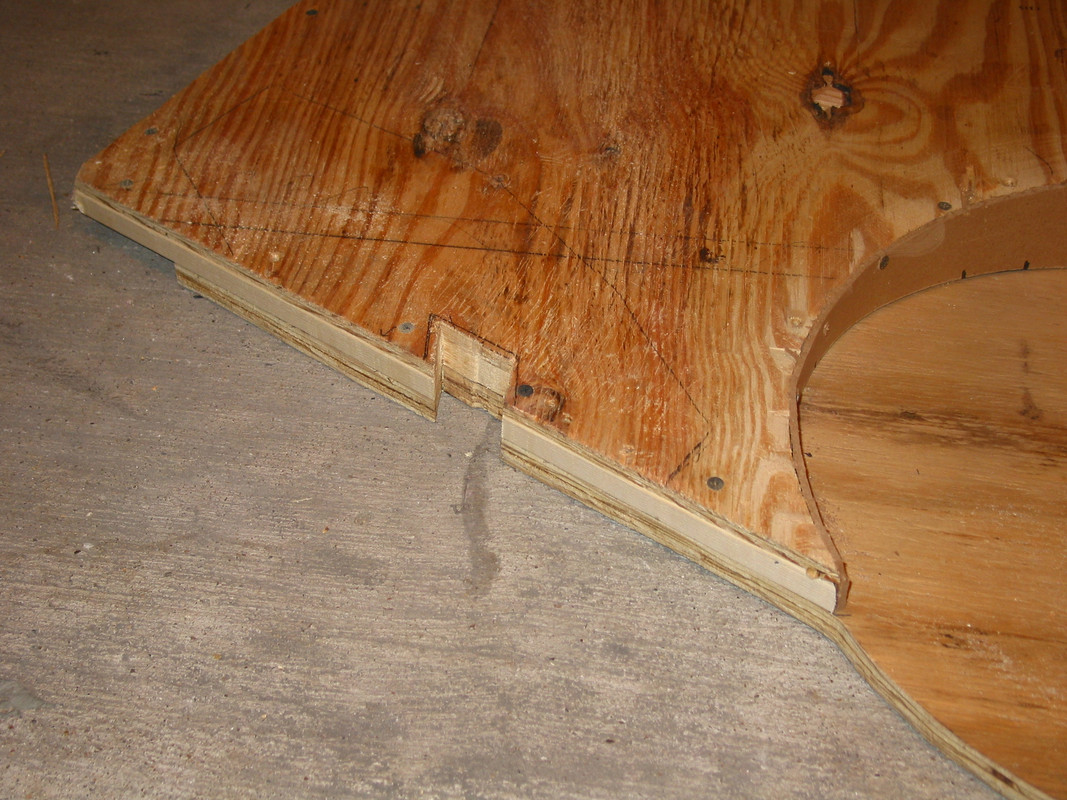

2. cut the notches in the front panel.

Batmobile

3. Made the front clips. Looking at the models I thought these were used to hold the gun turret on, but looking at the real car it seems they are clamps to hold the air intake ducts on. A bit of a silly way to do that but I suppose they wanted something that looked heavy and industrial. For those that don't know what I'm talking about, here it is on the real car.

Batmobile

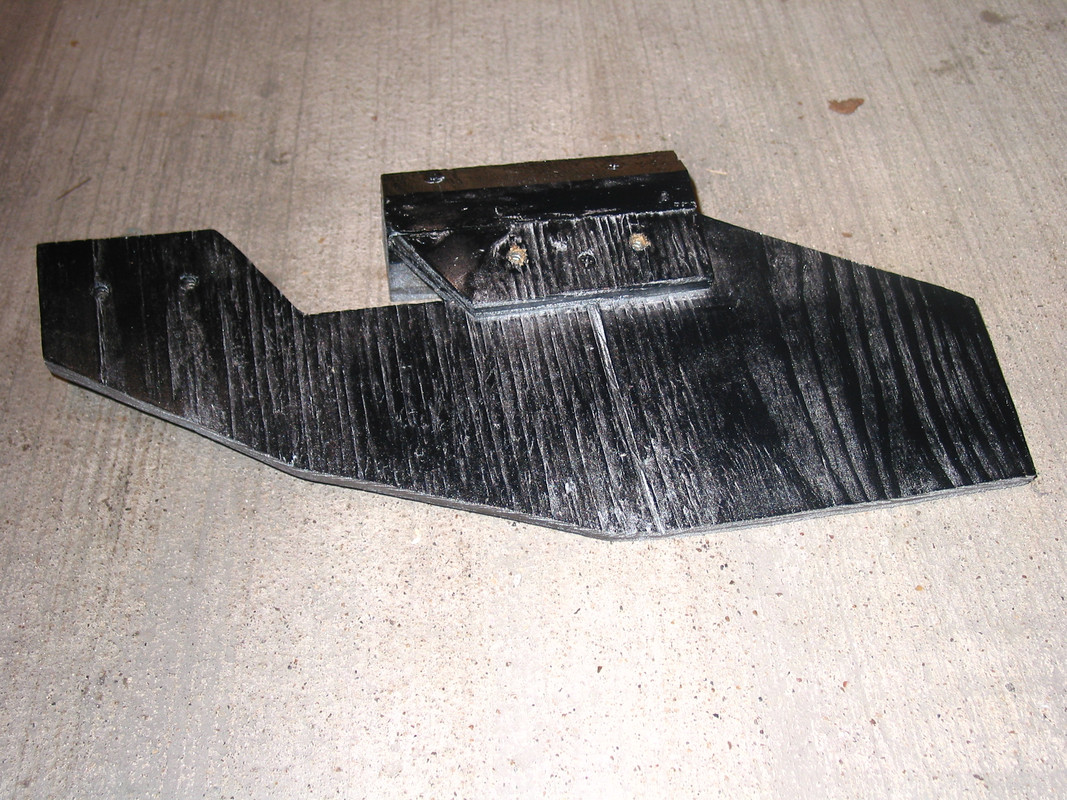

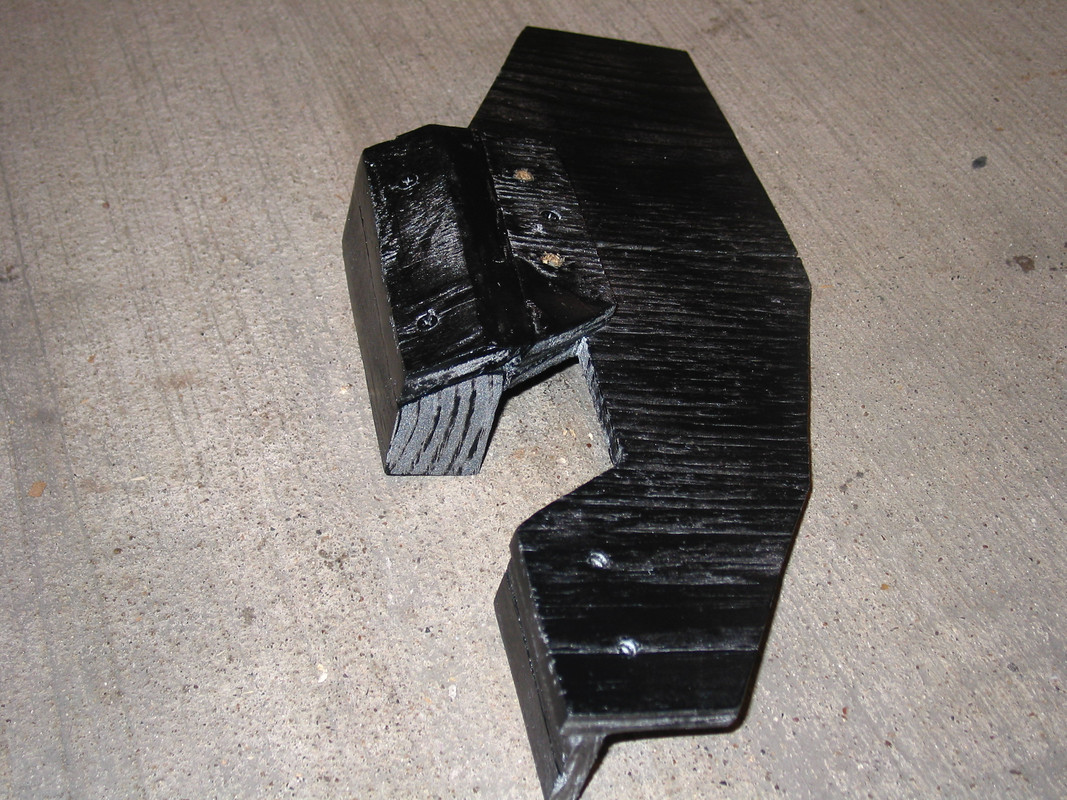

Here is a mockup clamp I made:

Batmobile
Batmobile

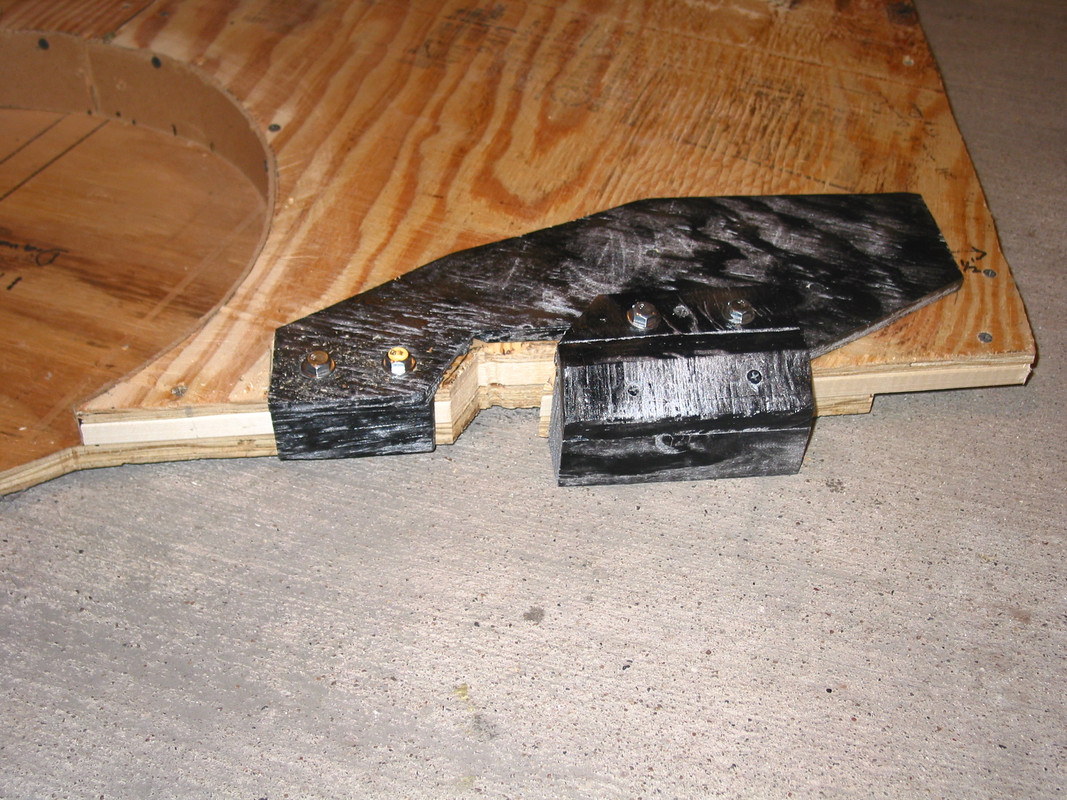

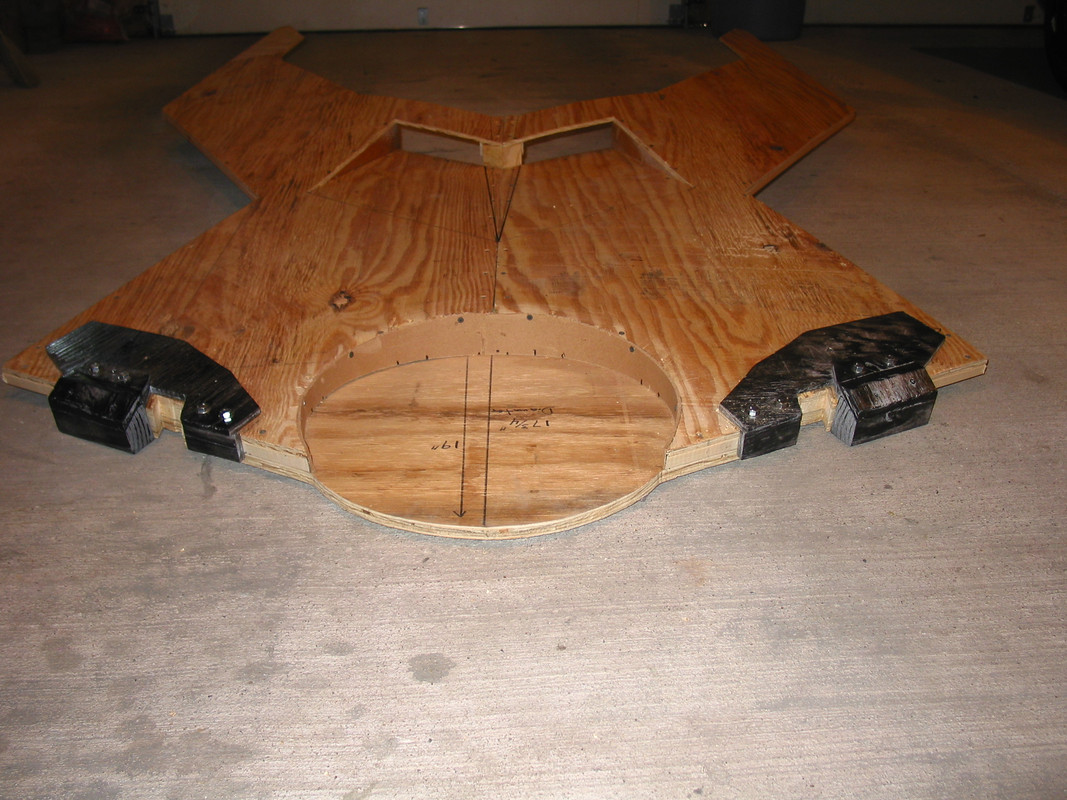

This is one thing that would have been easier to make out of steel. Here it is attached to the car:

Batmobile
Batmobile
Post #150639
Posted 11/12/2016 3:41:45 PM


Supreme Being

Supreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme BeingSupreme Being


Last Login: Today @ 4:59:11 PM
Posts: 1,115, Visits: 2,793

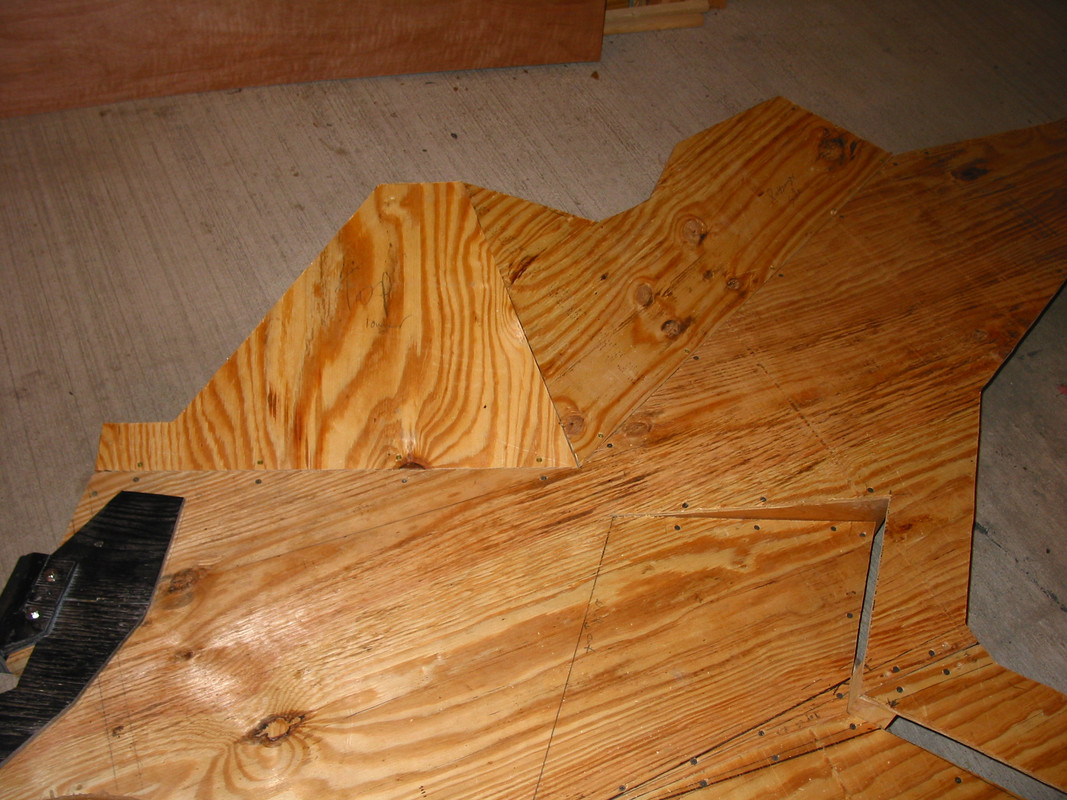

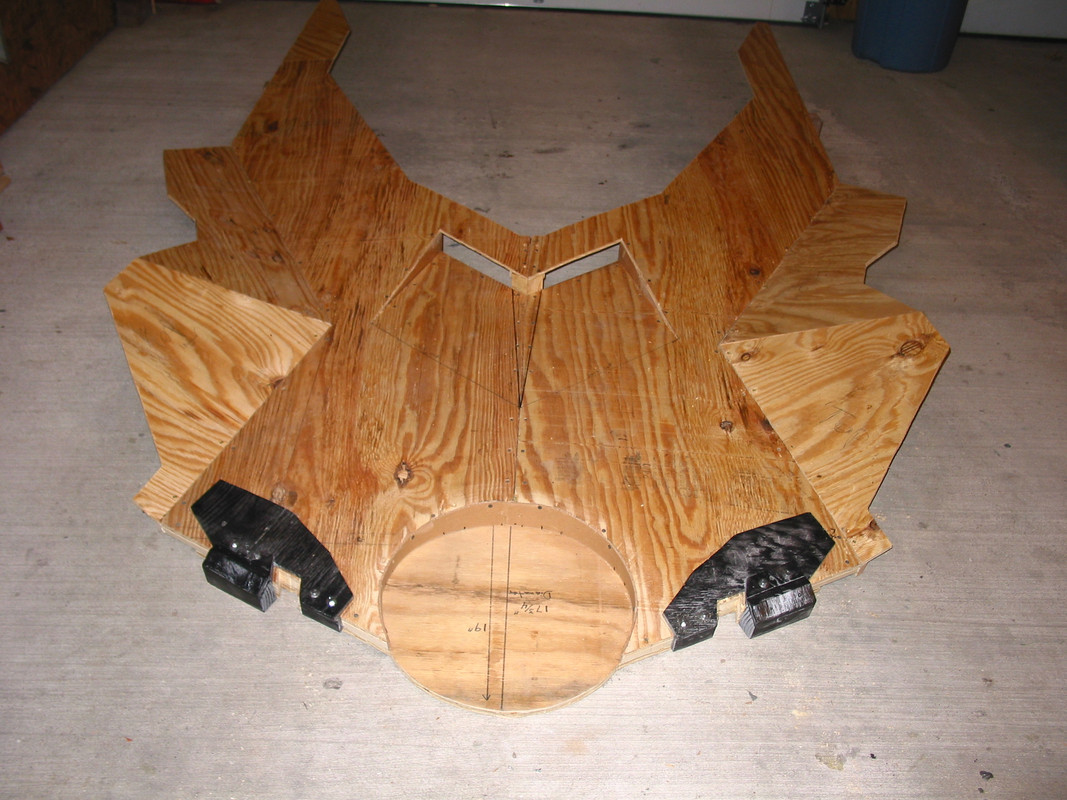

Added the front wheel flares today.

Batmobile
Batmobile

Starting to look more like the car now. I am not including measurements because I wouldn't build it this way in steel. I would make it more like an airplane wing, outer and inner wall tapered to the edges. If anybody REALLY needs the measurements PM me. I will tell you that the rise from the top of the body id 30 degrees and the angle of the bend is 20 degrees.

Batmobile

The width at the center point for the front wheels is six feet and three quarters of an inch. Not much room for the wheel outside the flares unless I can tuck them under somehow, say with air lift suspension. The space at the back is wider at about seven feet, but the wheels will mostly be forward of that area. That's more important for how far the side boxes will be able to stick out.

Next I plan to put in the divider between the air scoops and cut the holes for the front lift points and the defensive weapons array. Then I'll be ready to start the mockup of the front chassis and cabin.
Post #150651
